22'6 Kingfisher Shell
Be sure to select PRINT or DIGITAL when you order.

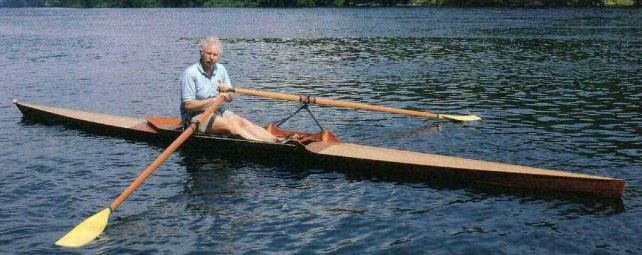

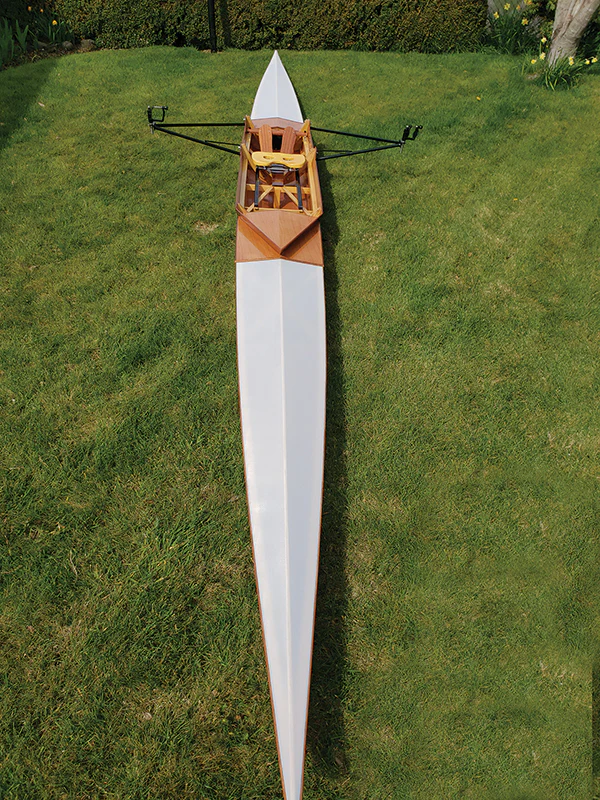

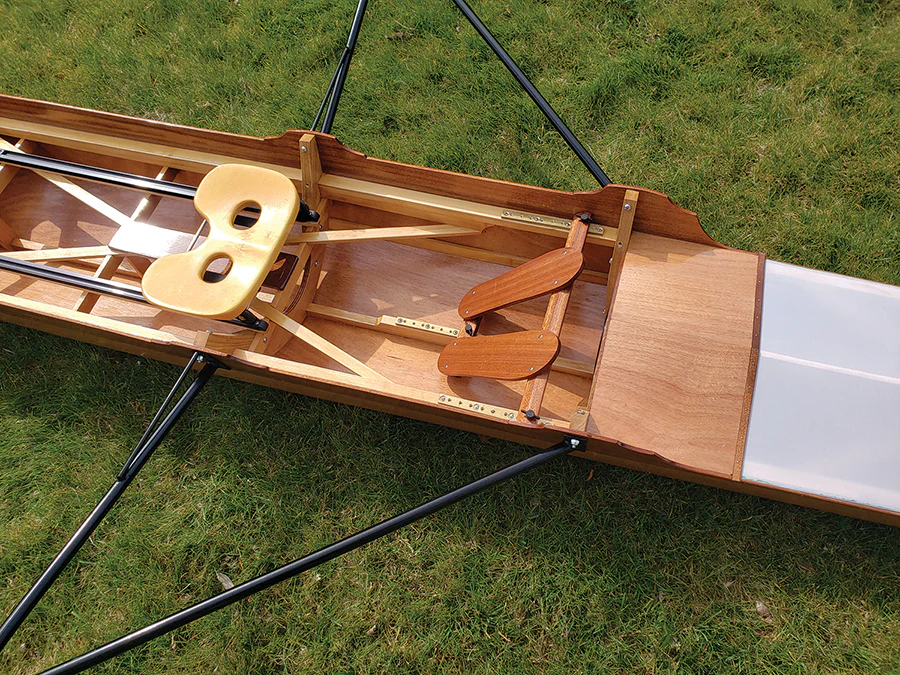

V-bottomed single shell with sliding seat, outriggers and light plywood construction.
Designed by Graeme King
LOA - 22' 6"
Beam - 1' 7"
Draft - 4"
Weight - 42 lbs.
Construction: Plywood planking over bulkhead-type frames
No lofting is required
Skill level: Intermediate

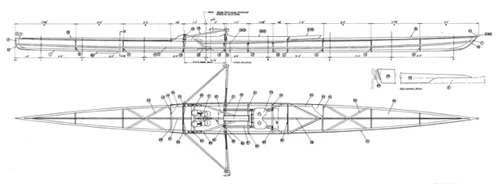

Plans include 4 sheets, plus 1 page of additional notes from the designer.
There is a 3 part building article, see WB issues #61, #62, and #63.
If ordering Digital plan sets: These files are in PDF format. Some designs will have just a single page needed to be printed on large paper... typically if they had full-sized mold patterns. Other pages could be printed on letter or tabloid size paper, if you want to save printing costs. You'll see a measurement on pages that have full-sized drawings, so your local print shop will just need to print to that size.
————————————————————
“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.
This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays. Â
